Description

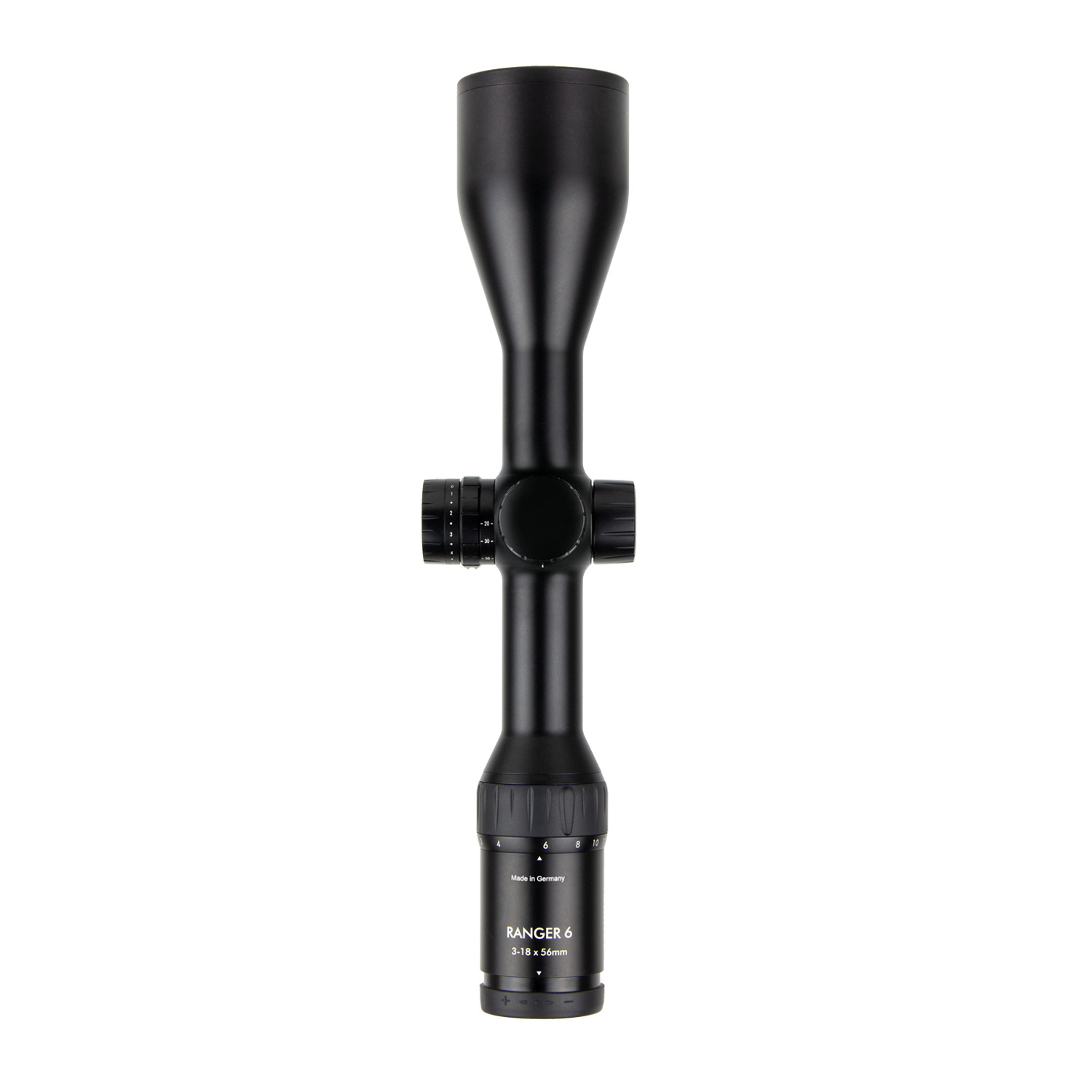

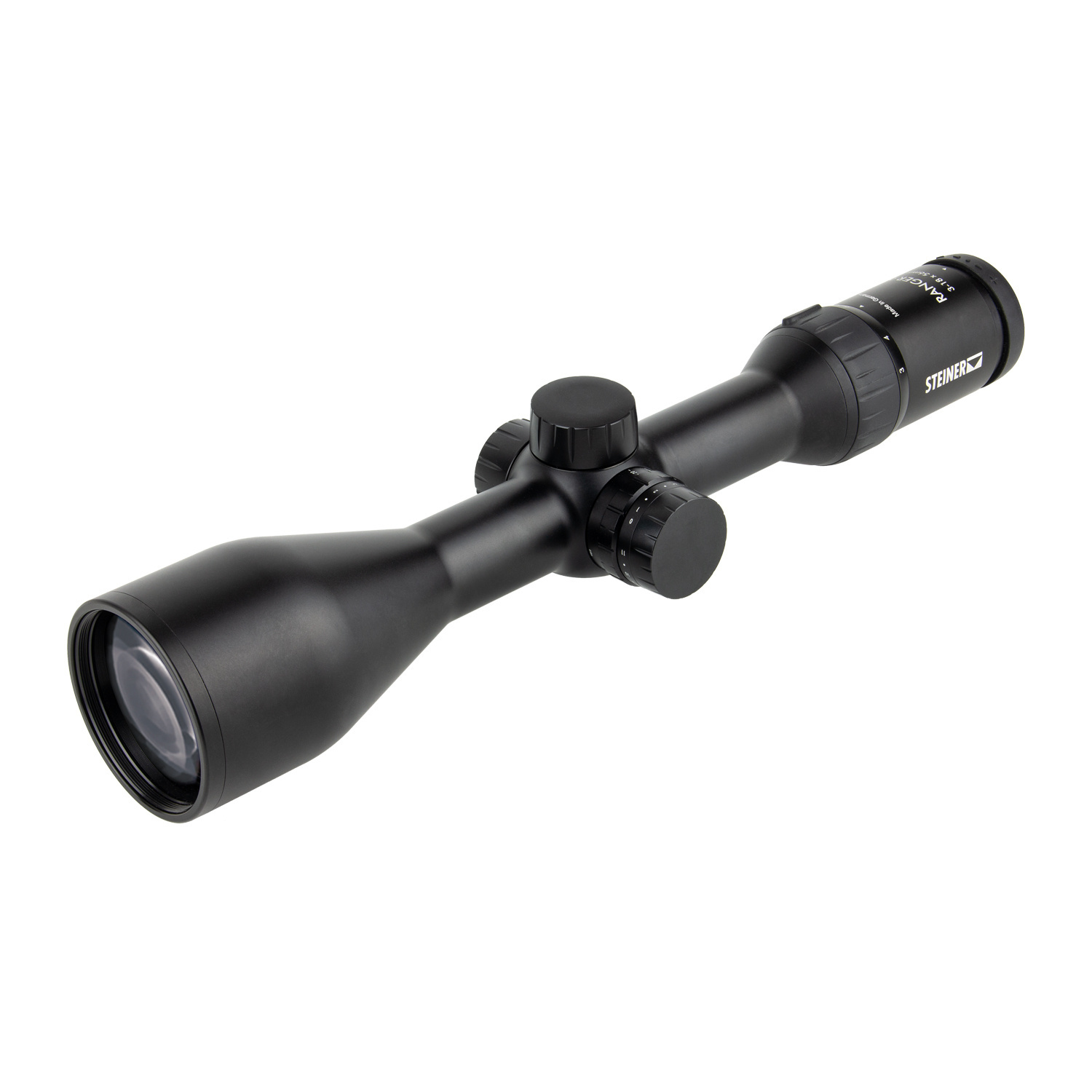

Steiner Ranger 6 3-18×56
This model in the Ranger 6 series features a balanced magnification and large objective lens, which provides better resolution at longer ranges than lower magnification models such as the 2-12×50, while remaining compact for versatile field use. It features a 30 mm barrel diameter , 3-18x magnification , 56 mm objective lens diameter , illuminated 4A-I reticle in the second focal plane, lateral parallax adjustment from 50 m to infinity, covered turrets with zero stop, and multi-coated lenses. Key specifications include a 90 mm eye relief , 14.05-2.41 m/100 m field of view , 0.1 MRAD reticle adjustment step , and a weight of 754 g .
Designed for stalking and ambush hunters, it is suitable for both enthusiasts who appreciate its lightweight design and professionals who need high performance in low light and at various distances. Includes illumination and zero stop; does not have a built-in rangefinder.
| Property | Data |
| GENERAL INFORMATION | |
| Item number | 8301400204 |
| OPTICAL PROPERTIES | |
| Zoom | 3–18× |
| Lens barrel diameter | 64 mm |
| Eyepiece diameter | 46 mm |
| Exit pupil | 8.5–3.2mm |
| Field of view at 100 m | 13–2.3m |
| Eye distance | >90mm |
| Diopter adjustment | –3 to +2 |
| Parallax | Adjustable from 20 m to infinity |
| FUNCTIONS AND EQUIPMENT | |
| Optics | High-Contrast |
| Nitrogen filling | Yes |
| Cross | 4A-I Fiber Dot |
| Position of the cross | 2nd focal plane (SFP) |
| Reticle adjustment step per 100 m | 1cm |
| Maximum crosshair displacement in height / direction per 100 m | ±130cm |
| Illumination of the cross | 11 levels (5 day, 6 night) with an intermediate position OFF |
| Operating temperature range | –25°C to +65°C |
| Watertightness under pressure | Up to 1m |
| PHYSICAL PROPERTIES | |
| Length | 342 mm |
| Weight | 733g |
| Center tube diameter | 30mm |
| INCLUDED EQUIPMENT | |
| Accessories | Protective cap for lens and eyepiece |
| GUARANTEE | |
| Warranty | 10 years |
