Description

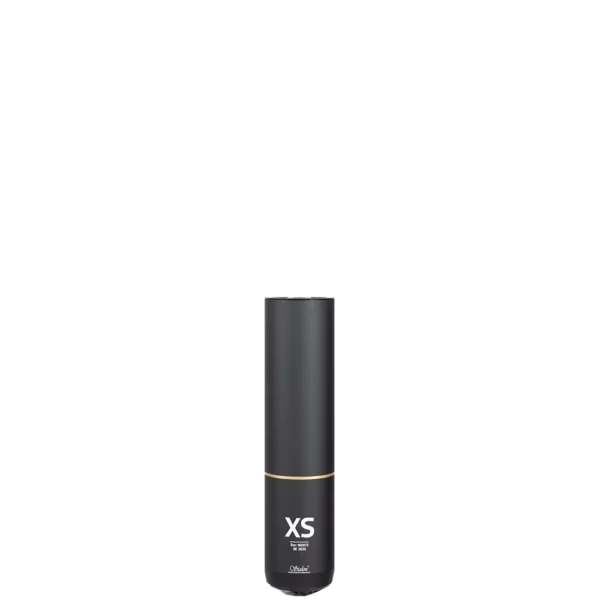

Stalon XS-Venti
The Stalon XS-Venti is designed for shooters who need a compact and lightweight suppressor with improved heat resistance and high durability .
Optimized for calibers from .223 to .308 Winchester , it combines the agility of the XS platform with the advanced Venti ventilated core . Its design makes it particularly suitable for semi-automatic rifles and higher frequency shooting . It is particularly suitable for the .308 Winchester caliber.
The ventilated construction improves heat dissipation and helps maintain consistent performance even during intense shooting. The low weight and compact dimensions also ensure excellent balance and good handling of the rifle.
The XS-Venti is therefore a reliable choice for hunting on the move, training and shooting situations , where, in addition to performance, effective temperature management and material resistance are also important.
As part of Stalon’s modular X-Series, the XS-Venti provides effective sound and recoil reduction in a robust and heat-resistant design. It is designed for use in situations where the pace of fire is higher and durability requirements are greater.
Technical data
| Data | Specification |
| Design | Telescopic version |
| Total length | 189.5 mm without pipe support / 196.5 mm with pipe support |
| Length forward of the pipe | 108mm |
| Length back along the pipe | 81.5 mm without pipe support / 88.5 mm with pipe support |
| Sound reduction | Up to –26.5 dBc (.308) |
| Weight | From 299 g without tube support / from 306 g with tube support |
| Diameter | 49mm |
| Available calibers | Max .30 / Max .375 |
| Available threads | M14×1, M15×1, M18×1, 1/2-28 UNEF, 5/8-24 UNEF |
| Maximum pipe diameter | Standard 22.5 mm / on request 25.0 mm |
| Color | Matte black with a gold ring in the middle |
| Outer material | High-quality anodized aluminum |
| Interior material – partitions | High-quality anodized aluminum |
| Core (first barrier) | Stainless steel |
| Thread | Stainless steel |
Good to know
Pipe support
The product is supplied with a pipe support , adapted to most models according to the selected muffler thread.
The pipe support must ALWAYS be 0.5–0.7 mm larger than the pipe diameter .
If the supplied barrel support does not fit within the specified range, we recommend that its opening be adjusted accordingly by a qualified gunsmith or authorized Stalon dealer .
Intense firing and maximum allowable temperature
All Stalon products are tested to extreme loads. We recommend that the product temperature does not exceed 250 °C .
The rate of heating to 250 °C depends primarily on the number of rounds fired in a given period of time . The more intense the firing, the faster the product will reach the temperature limit of 250 °C.
Each Stallone silencer is marked with the maximum caliber allowed – for example Max cal. .30. This means that the silencer is suitable for all calibers up to and including this size.
Find your caliber below and check which group it belongs to.
Available calibers
| Version | Caliber size | Compatible calibers |
| Max cal. .223 | Smallest caliber | .22 Hornet, .22-250, .222 Rem, .223 Rem |
| Max cal. 6.5 | Small to medium caliber | 6MM XC, .243 Win, 6.5 Creedmoor, 6.5×55 |
| Max cal. .30 | Medium caliber | .270 Win, .270 WSM, 7×64, .308 Win, 7 MM Rem, .30-06, .300 Win Mag, .300 WSM, .300 RCM |
| Max cal. .338 | Large caliber | 8×57 IS (JS), 8×57 IRS (JRS), .338 Win Mag, .338 RCM, 8.5×55 Blaser, .338 LM |
| Max cal. .375 | Very large caliber | 9.3×57, 9.3×62, .375 HH |
| Max cal. .45 | Largest caliber | .416 Rem Mag, .45-70, .458 Win Mag |
In our workshop we can install a silencer and get your rifle fired again!
